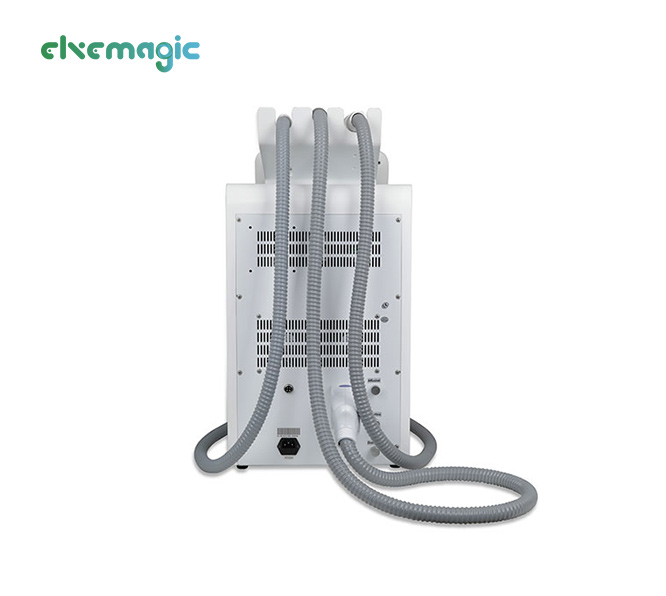

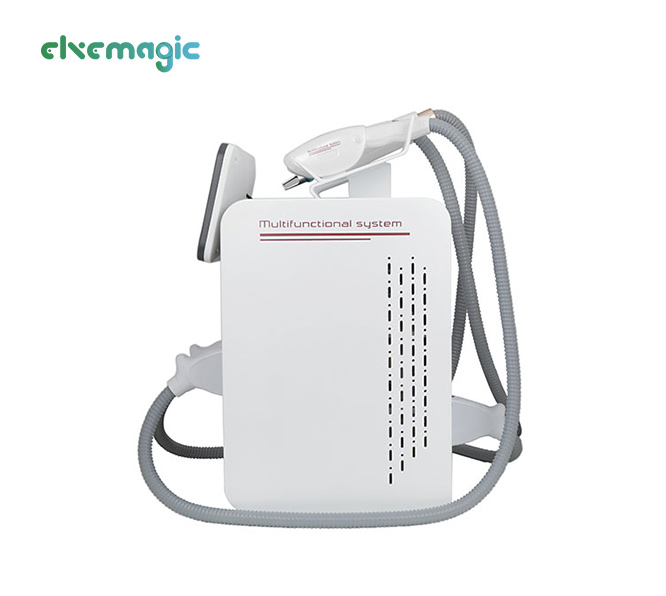

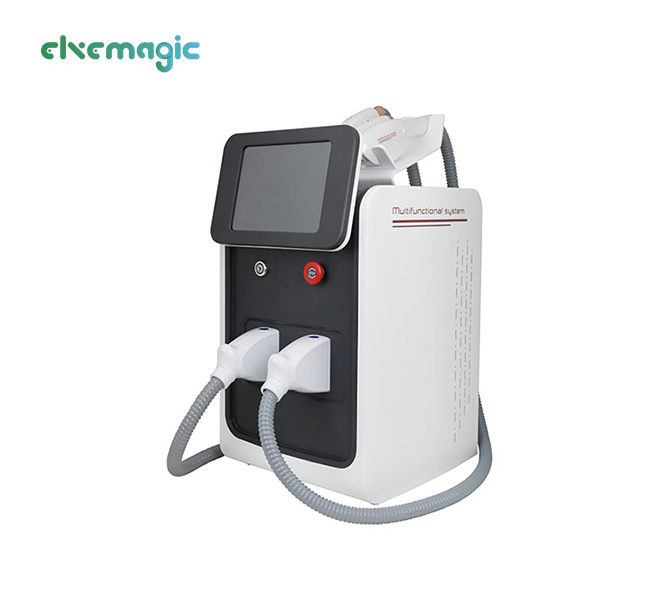

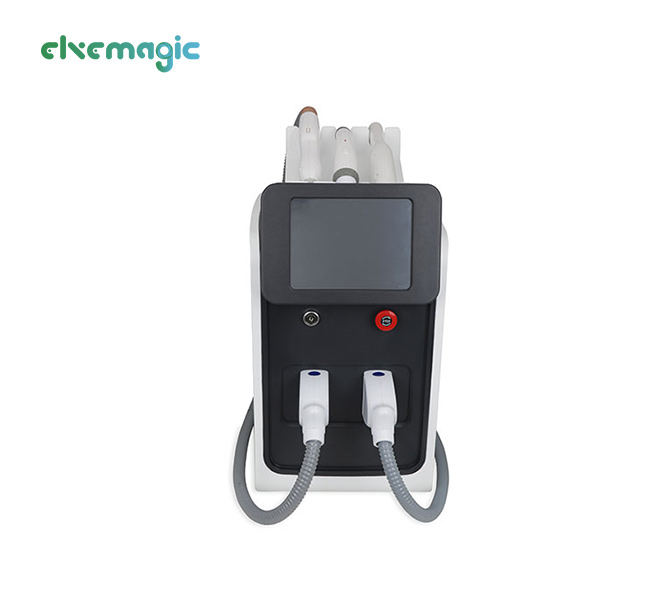

IPL+RF+Nd Yag Laser Machine EM 502

  • Display: 10.4 inch touch screen
  • Cooling Method: Water cooling + air cooling + semiconductor refrigeration
  • Water Flow Detection: Yes
  • Water Temperature Detection: Yes
  • High Pressure Detectio: Yes
  • Total Power: 2600W

product description

The multifunction portable IPL+RF+Nd yag laser machine is a multi-functional beauty instrument that integrates the powerful pulse light, laser and radio frequency technology, which is the core of the beauty technology field.It combines a variety of energies, fully exerts the effects of light energy and electrical energy, and has significant clinical effects; it has been proven to be safe and effective for skin with different skin types and skin tone.

Technical Principle:

E-LIGHT- uses IPL and RF dual-stage RF technology to act on the entire dermis and connective tissue, stimulate collagen at different depths, rearrange and grow, and achieve therapeutic results.The two-stage radio frequency simultaneously releases energy, and utilizes the selective absorption of light energy by the skin to cause photothermolysis effects on various diseased tissues of the epidermis and dermis.


Because its requirement for light energy is much lower than that of traditional IPL, it can absorb more energy from various pigmented and vascular lesions in the epidermis and dermis without damaging the epidermis, and better eliminate these diseased tissues. , to achieve the effect of treatment.


SHR-Professional 640nm-1200nm hair removal wavelength can effectively reach the dermal papilla, continuous illuminating to ensure that the target tissue generates enough heat to inactivate the hair follicles and surrounding stem cells, hair follicle atrophy hair stops growing; the latest single pulse technology and sapphire contact the operation head synchronizes the operating and cooling, not only eliminates the long-term effect of the hair, but also protects the normal skin tissue from damage, making the customer feel more comfortable during the operation.


RF technology - first to ensure that the skin is comfortable and not damaged, and then use radio frequency waves to generate thermal energy conduction, accurate to the deep layers of the skin, stimulate the ions in the body, charged colloidal particles to produce rapid movement or vibration, friction to generate heat, when the skin deep collagen tissue When the heat reaches 45°C-60°C, it naturally produces immediate contraction, stimulates the secretion of more new collagen to fill the gaps of the atrophic and lost collagen, and rearranges and reconstructs the soft support of the skin, ultimately achieving firming skin,filling in wrinkles and restoring skin elasticity and shining.


J laser technology - using the gem-adjusting Q mode, using the instantaneous emission of high energy to effectively break the pigment in the diseased tissue. That is, the principle of photo-blasting: the accumulated high-energy instant emission causes the irradiated pigment particles to absorb energy and then expand and rupture, and a part of the cracks become more tiny particles excreted, and some are excreted by the human body through the lymphatic system, thereby removing the pigment. The surrounding normal tissue does not absorb the pulsed light of 1064 and 532nm, thus maintaining the integrity of the cell frame, and there is no condition for scar formation; therefore, the maximum degree of safety is guaranteed to be plagued by complications after use. Other methods are unmatched.


Technical Parameters
Display 10.4 inch touch screen Cooling Method Water cooling + air cooling + semiconductor refrigeration
Water Flow Detection Yes Water Temperature Detection Yes
High Pressure Detection Yes Total Power 2600W
IPL Parameter
Light Window 10*40mm Spectral Range 480--1200nm、530--1200nm、640--1200nm
Cooling Range 1-5 files Energy 1-50J/CM²
High Pressure Detection Yes Total Power 2600W
Number Of Pulses 1-5 Luminous Delay 1-5S
Pulse Width 1-10ms Pulse Interval 1-99ms
SHR Luminous Frequency 1-10HZ
Laser Parameter
Wavelength 532nm、1064nm、1320nm Pulse Width 10ns
Energy 100--1200mj Working Frequency 1-10Hz
Spot Diameter 1-8mm Far Infrared Aiming Light Yes
RF Parameters
RF Frequency 5Mhz Probe Size 22mm、30mm、36mm
Energy 1-20


- Hair removal: permanent hair removal, indecent hair throughout the body (hair in the growing season), including lighter hair.

- Freckle: remove freckles, chloasma, sunburn, age spots, hemorrhoids, facial warts.

- Rejuvenation: Improves enlarged pores, rough skin, fine wrinkles, and restores skin elasticity.

- Wrinkle: removes true, false wrinkles, facial and body anti-aging.

- Treatment of telangiectasia: red blood, facial flushing.

- Improves dullness, makes skin fair and even.

- Specially removes red, brown, brown and other colored tattoos.

- Effectively remove all eyebrows, embroidered eyebrows, lips, tattoos, eyeliners and lip liners.

- Treatment of pigmented skin lesions and mixed pigmentation, such as age spots, birthmarks, ota, black mites, etc.
